Disti Series

  • Sale
  • $ 20


The Disti Series of 1U Tiles helps distribute signals throughout your modular system.

  • Disti B - active buffered multiple signal distributor
  • Disti U - passive unbuffered "plain old mult" signal distributor
  • Disti N - passive something new and novel, I think you'll like it

We are retooling to use new front panels, but only Disti B is available today. We will continue to build up more Disti B units while also getting the rest of the Series in stock.

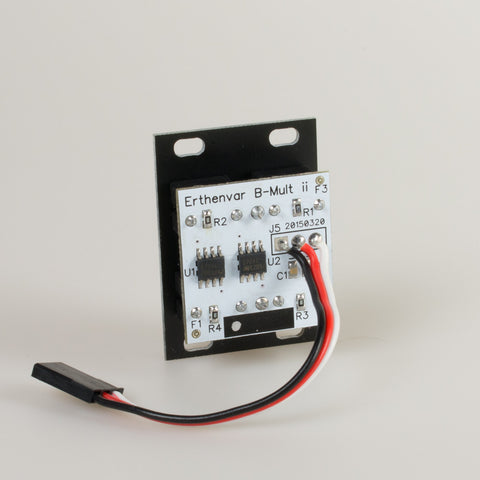

Disti B is a 1 to 3 buffered multiple which is typically used to distribute 1 V/oct signals to multiple destinations. It may also be useful in other buffering applications. It is DC coupled and may be used with CV or audio signals, though more typically on pitch sensitive CV signals.

Plug the input into the upper left jack, and take outputs from the remaining three.

Features

  • Formerly known as B-Mult and Buff
  • New matte black resin panel, precision and pretty
  • 1 to 3 buffered multiple
  • Signal In jack (top left)
  • Signal Out jacks (top right, bottom left, bottom right)

Specifications

  • Width: 6 HP / 1 Tile Unit (not Intellijel compatible)
  • Depth: 15 mm (0.59”)
  • Power cable: 3-pin polarized Tile Power
  • Power +12V: 10 mA
  • Power -12V: 10 mA
