9mm Smooth Vertical Pot

  • Sale
  • $ 1.30

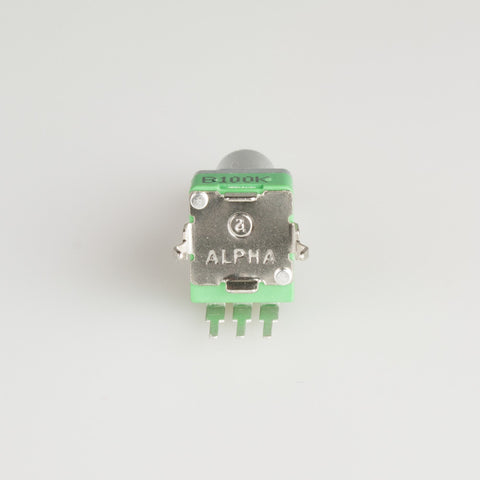

9mm Vertical Mount single element, single shaft potentiometers.

These pots can be used to build modules with the PCB mounted parallel to the front panel, along with our Vertical, Inline, or Stereo jacks (see Related Products). Smooth metal shaft compatible with our selection of knobs (also see Related Products).

Features

  • Sold in single pieces
  • Includes: pot, nut, and washer
  • Single shaft, single element
  • Vertical mount
  • Durable, smooth metal shaft
  • Threaded bushing for panel mounting
  • PC pins for PCB mounting
  • Pins have 0.1" pitch for easy breadboarding (pot pins only)

Specifications

  • Threaded bushing/nut: M7 x 0.75mm
  • Shaft Length (bushing + shaft): 15mm (0.59")
  • Threaded bushing length: 5mm (0.2")
  • Smooth shaft length: 10mm (0.39")
  • Shaft diameter 6.3mm (0.25")
  • Mounting pin holes: 1.8 x 1.2mm (0.07" x 0.05")
  • Alignment tab: 2.0 x 0.8 x 0.8mm (0.08" x 0.03" x 0.03")
  • Pin pitch: 2.54mm (0.1")
  • Pin width: 0.9mm (0.04")
